INSULATION PLUS Energy Savings to 30%!
INSULATION PLUS -7/8" thick, ½" thermal insulation, energy savings up to 30%

"THE ENERGY SAVER"

1. INSULATION PLUS EMPLOYS AN ADDITIONAL 1/4-INCH OF THERMAL INSULATION ENCASED IN A SEPARATE FLEXIBLE STAINLESS STEEL SHELL

2. STANDARD 1/4-INCH THICK THERMAL INSULATION FOUND ON ALL OMEGA CERAMIC BAND HEATERS.

3. HELICAL NICKEL-CHROME COIL FOR EXTENDED SERVICE

4. CERAMIC COIL SUPPORTS


COOLER AMBIENT TEMPERATURES
AROUND THE OPERATING MACHINES

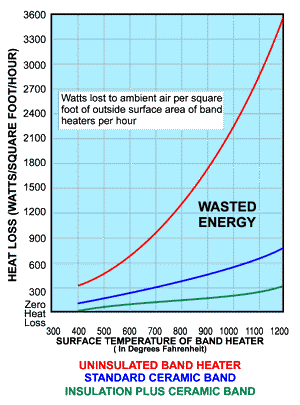

COMPARISON OF INSULATED VERSUS NON-INSULATED
BANDS IN TERMS OF WASTED ENERGY
SOME TYPICAL INSULATION PLUS DESIGNS

Stud Terminals in Low Profile Box (1" High) With BX installed
Stud Terminals in Standard Two Terminal Box (1-3/4" High)
Standard Flange Lock-Up

Optional spring Loaded Latch and Trunnion Lock-Up For Large Diameter Bands.
Stud Terminals in Standard Three Terminal Box (1-3/4")
Thermo Couple Hole in Gap Shell Overlap With Lock-up
SUPER INSULATION PLUS-
1-1/4" thick, 7/8" thermal insulation, up to 40 watts/sq. in.
Super Insulation Plus employs an
additional 5/8 inch of thermal insulation
encased in a separate
flexible stainless steel shell.

"MAXIMUM ENERGY SAVINGS, MINIMUM SHEATH TEMPERATURES"
