| CERAMIC
STRIP HEATERS |
BLACK STAR
RADIANT STRIP HEATERS
SOME TYPICAL
APPLICATIONS
• Thermoforming • Air Heating •
Platens • Molds
• Ovens • Sealing • Dies • Tank
Heaters • Hot Plates |
SPECIFICATIONS
ELEMENT - Nickel/Chrome Coil
SHEATH
- Stainless
Steel(Heavy Gauge)
THICKNESS
- 1/4"-5/16"-3/8"
TEMPERATURES
- Up to 1400 deg.F
WATT DENSITY - Up to 45 watts/square inch
VOLTAGE
- Up to 240
volts - Consult factory for higher voltage
TERMINALS
- Post
Type-Standard 10-24 Thread
LENGTH
- Minimum
4" up to any practical length
MOUNTING
TABS - Available
with or without tabs
MOUNTING
SLOTS - 5/16"
X 1/2" |
| 4 SIZES
AVAILABLE |
¼" x 1" |
5/16" x
1" |
| 5/16" x
1-1/2" |
3/8 x 1-1/2" | |
BLACK STAR STRIP HEATERS
 |
OPTIONS
LEADS - Off top surface or from end
LEADS - in braid or armor
- POST TERM
- 2 on 1 end - 1
on each end
- TERM BOX
CERAMIC
- TERMINAL
COVERS
-
- Others sizes
available.
Please consult factory with your requirements.
Radiant Panels incorporating these heaters can be
customer manufactured. Please consult factory.

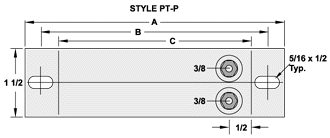

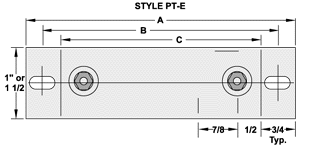

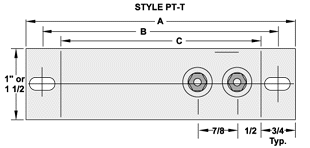

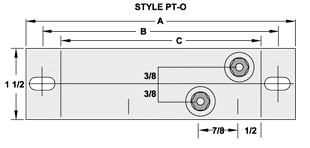

All Heaters Available with Leads Out End, One
Each End, or Leads Off Top Surface. Styles PT-P
and PT_O Available in 1-1/2" Width Only.
Thicknes Tolerance ±.005"
HOW
TO ORDER -SPECIFY:
With or without mounting tabs; A-B-C dimensions; 1"
width specify 1/4" or 5/16" thick; 1-1/2"
width specify 5/16 or 3/8" thick; If post terminal
choose style If leads choose location; Add any options
required. |
 |
 |
 |
